Fine Mist Spray Pumps FMB series in crimp and snap-on versions:
- Dosages: 0.05ml, 0.05ml(Low Profile), 0.04ml(Low Profile), 0.07ml(in two types of the housings),
0.075ml(Low Profile),0.08ml,0.08ml LP(Low Profile), 0.12ml, 0.16~0.19mlLP(Low Profile)
- Colors for actuators and ferrules: on your requests
- the length of dip tube: on your requests
- Various actuators available for your options
　

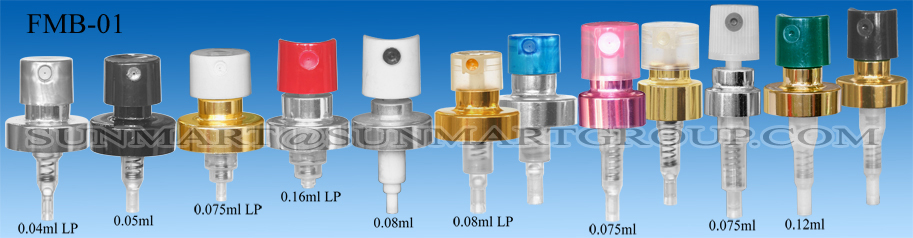

a. The crimp-on spray pumps FMB-01(metal ferrules & plastic actuators)
-dia.13mm,15mm
-dia.18mm,20mm
　

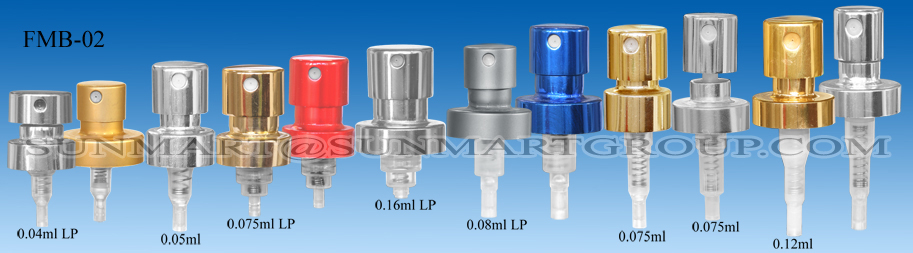

b. The crimp-on spray pumps FMB-02(metal ferrules & metal sheathed actuators)
-dia.13mm,15mm
-dia.18mm,20mm
 　

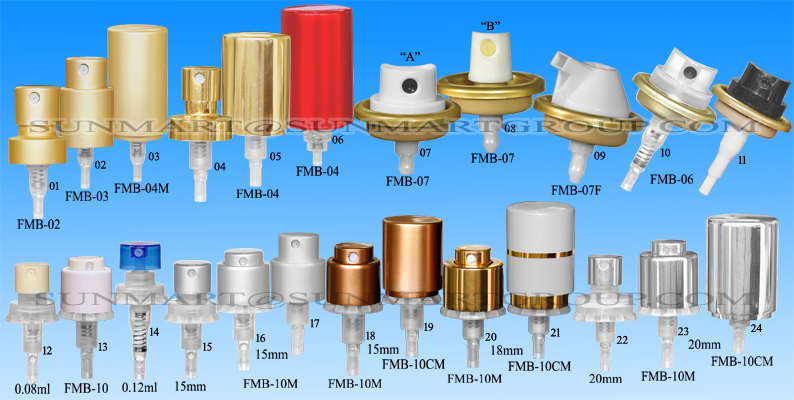

c. The crimp-on spray pumps FMB-03(metal ferrules,actuators & metal collars)
 - dia.13mm,15mm
 - dia.18mm,20mm

d. The crimp-on spray pumps FMB-04(metal ferrules & metal overcaps without metal collars)
 - dia.13mm,15mm
 - dia.18mm,20mm

e. The crimp-on spray pumps FMB-04M(metal ferrules+metal collars with metal overcaps)
 - dia.13mm,15mm
 - dia.18mm,20mm

f. The aerosol typed spray pumps FMB-06(in aerosol metal ferrule)
 - Spray Pump 1"  dosage:0.12ml only

g. Aerosol Pump FMB-07
 - Aerosol Pump  1"
   Aerosol Foaming Pump FMB-07F
 - Aerosol Pump  1"

h. The crimpless spray pumps FMB-10 with metal collars dosage:0.08ml LP,0.12ml and plastic actuators
 - dia.15mm
 - dia.18mm
 - dia.20mm

- The crimpless spray pumps FMB-10M with metal collars dosage:0.08ml LP,0.12ml and metal sheathed actuators
 - dia.15mm
 - dia.18mm
 - dia.20mm

- The crimpless spray pumps FMB-10CM with metal collars dosage:0.08ml LP,0.12ml and metal sheathed actuators

  +a metal caps+plastic inner sleeves
 - dia.15mm
 - dia.18mm

 - dia.20mm

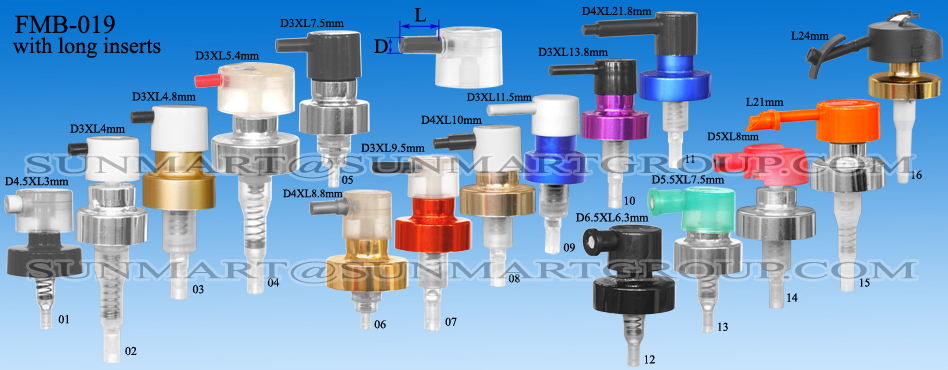

  j. The crimp-on spray pumps FMB-019(metal ferrules & plastic actuators+long inserts)
-dia.13mm,15mm
-dia.18mm,20mm

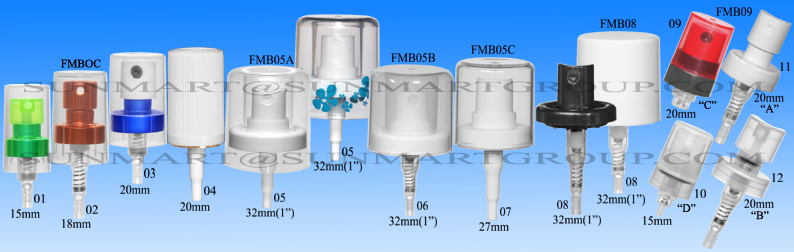

 　k. The snap-on spray pumps FMB05A(plastic snap-on+plastic overcap with long skirt)

        (the cap's dimension: dia.36.8mmXheight 54.4mm)
   - snap-on spray pump 32mm(1") dosage:0.10ml,0.12ml "05"
     with PP overcap
     with K-resin overcap
    The snap-on spray pumps FMB05B(plastic snap-on+plastic overcap with short skirt)
   - snap-on spray pump 32mm(1") "06" dosage: 0.10ml,0.12ml with PP overcap
This FMB05A/B are used for special bottles' neck" 32mm.

l. The snap-on spray pumps FMB05C((plastic snap-on+K-resin overcap)
    - spray pump 27mm "07" dosage: 0.10ml,0.12ml without overcaps
     (the cap's dimension: dia.32mmXheight 38mm)
This FMB05C is used for special bottles' neck 27mm

m. The snap-on spray pumps FMB08((plastic snap-on+PP overcap)
    - spray pump 1" "08" dosage: 0.10ml,0.12ml without overcaps
      (the cap's dimension: dia.34.4mmXheight 39.7mm)
This FMB08 is used for aluminium bottles' neck 1".

n. The snap-on spray pumps FMB-09 in snap-on version
    - FMB09-C "09" dia. 20mm dosage:0.16ml with PP dustcap
       This PP ferrule can be used for special plastic bottles neck: 20mm
    - FMB09-D "10" dia.15mm dosage:0.075ml,0.10ml,0.12ml with PP dustcap
       This PP ferrule can be used for special plastic bottles neck: 15mm
    - FMB09-A "11" dia. 20mm(FEA20) dosage:0.10ml,0.12ml without caps
       This PP ferrule can be used for regular glass perfume bottles neck: 20mm.
    - FMB09-B "12" dia. 20mm dosage:0.10ml,0.12ml without caps
       This PP ferrule can be used for special plastic bottles neck: 20mm
